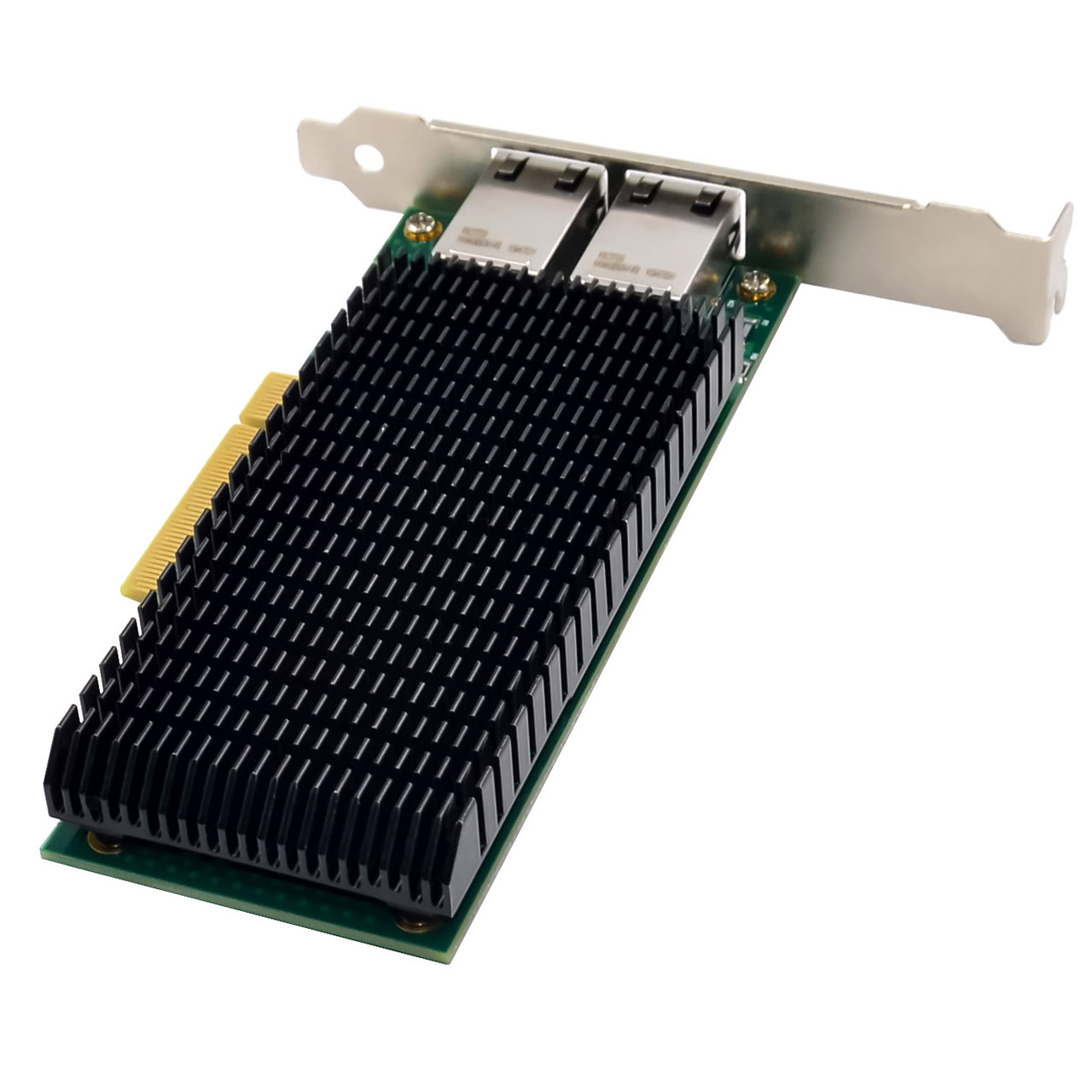

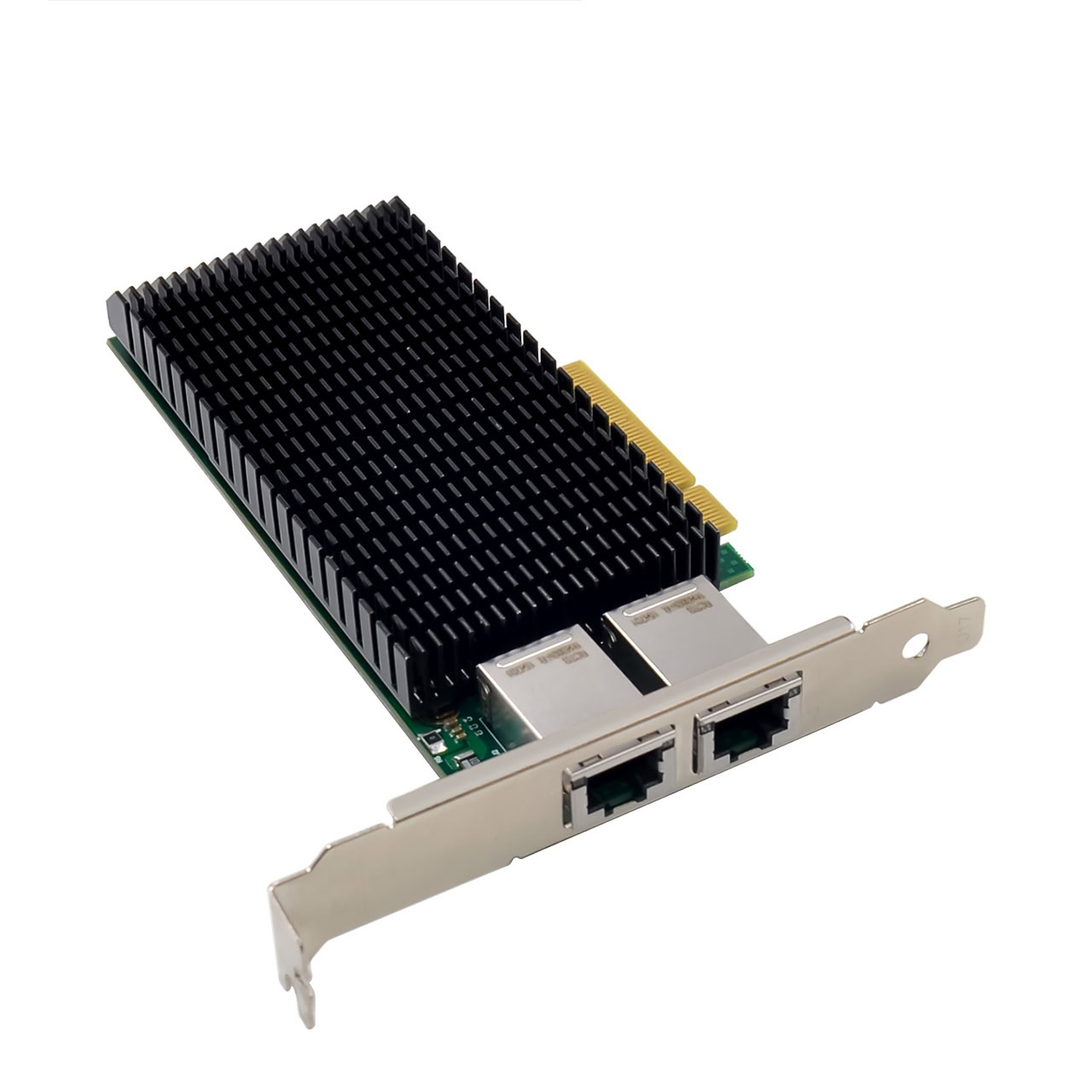

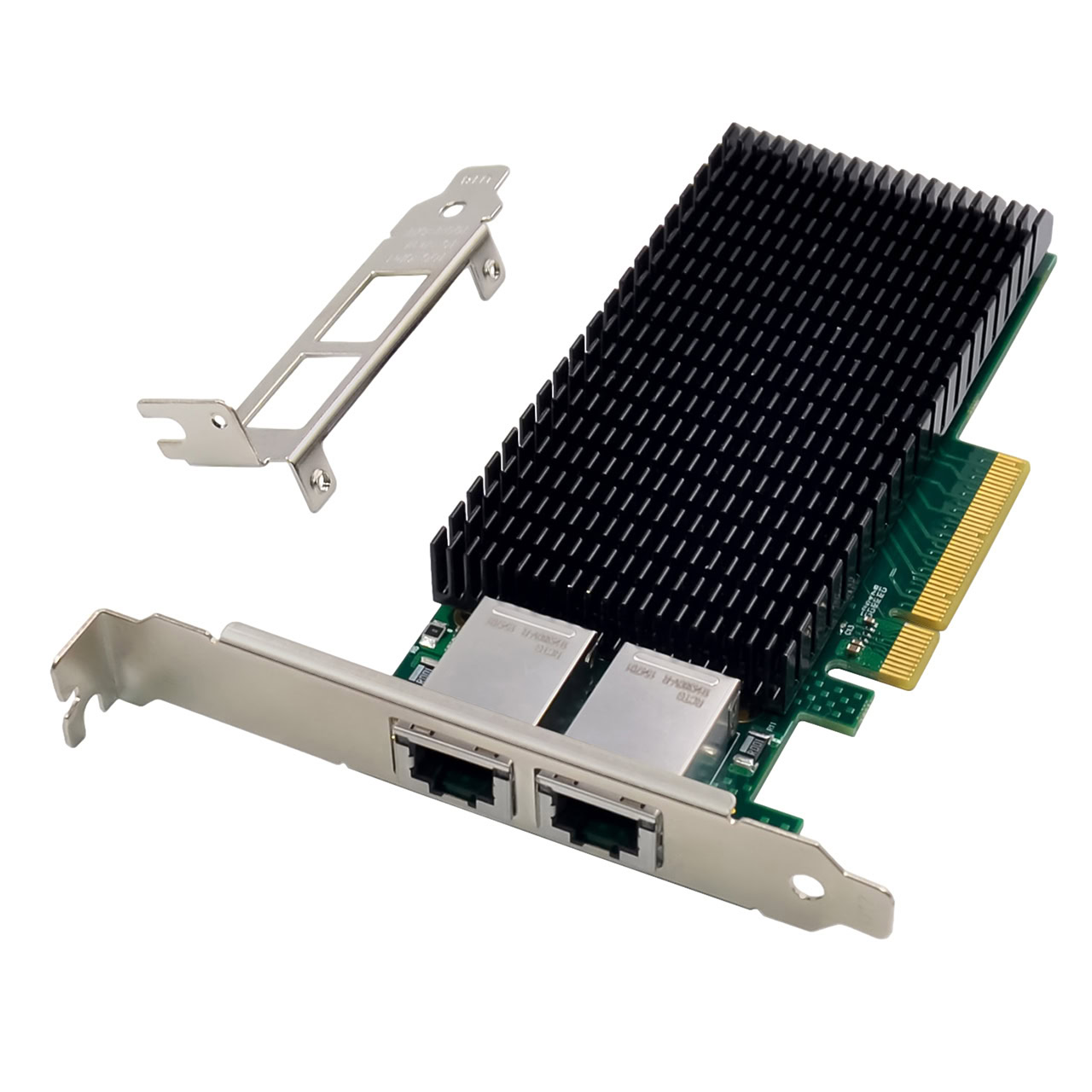

PCIe 2.1 x8 Intel X540-T2 – 2 x 10 Gbps RJ45 PCIe Network Adapter / LAN Card

PCIe 2.1 x8 Intel X540-T2 – 2 x 10 Gbps RJ45 PCIe Network Adapter / LAN Card

• Supported OS :
  • Windows 7 / 8 / 10 / 11 / Windows Server 2008 / 2012
  • Mikrotik RouterOS 6 / 7
  • Ubuntu 24.04 (dan varian linux lainnya via ixgbe driver)
  • Red Hat Enterprise Linux (RHEL) Version 6+
  • VMWare ESX 4.0+
• Network Controller : Intel X540
• PCI Express Board Dimension : 145 x 69 mm
• PCI Express Version : 2.1
• PCI Express Form Factor : x8
• Network Throughput (Bandwidth) : 2 x 10 Gbps (10GBASE-T) / 1 Gbps (1000BASE-T) / 100 Mbps (100BASE-TX)
• Max Data Transmission Distance : 100 meter
• Feature Standard :
  • IEEE 802.3 autonegotiation (AutoMDX/AutoMDIX)
  • IEEE 802.3 2005 flow control flow control
  • IEEE 802.1p
  • IEEE 802.1q VLAN
  • IEEE 802.3ad LACP
  • iSCSI Support
  • PXE Support
  • TX/RX IP, SCTP, TCP and UDP checksum offloading (IPv4 & IPv6)
  • TX TCP segmentation offload (IPv4 & IPv6)
  • TX/RX Side Scaling for Windows, Scalable I/O for Linux
  • VMDQ up to 64 queues per port
  • VMLB

Include:

• 1 x PCIe 2.1 x8 Intel X540-T2 Network Card
• 1 x Low Profile / Half-Size Casing Bracket

Q : Sudah pernah test seberapa power usage network card ini?
A : 2 x 10 Gbps = 17.4W

Q : Bisakah colok network card ini di slot PCIe x16?
A : Bisa

Q : Bisakah colok network card ini di slot PCIe x1 / x4?
A : Tidak bisa
